New Product!
CASP Printer Emulator,
p/n AB910E
Download the Trial Version Here

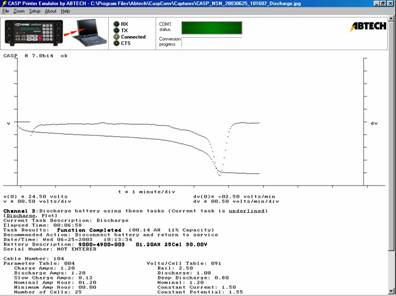

This software
program will automatically capture your CASP printouts instead of using
an EPSON serial printer. The printouts are converted to JPEG files
which can be viewed, saved, printed or e-mailed as attachments.
As the CASP
generates consecutive printouts during a battery servicing function,
each printout will be automatically saved in the “Captures” folder.
If desired, any file can be loaded, and then saved under a
different file name created by the user.
System
Requirements: A PC with at least one serial (com) port, running Windows
98, 2000 or XP. A 25-pin male to 9-pin female RS-232 serial cable is
required to connect your CASP to the PC.
The following CASP
models and firmware is supported:
CASP/2000L, H and
HM version 5.0
CASP/2000L, H and HM version 6.1
CASP/2500H version 7.0
Additional features
of this application include:
1. Automatic filing
system records battery serial number (if entered) and task code (charge
or discharge).
2. Printing can be
accomplished from the file menu including charge/discharge plots and
table dumps.
3. Text Capture of
the charge/discharge plot information is available (file, view text
capture) and a text editor allows the user to enter custom information.
4. Com port number
is displayed on the main screen for applications where multiple CASP
units are being operated on the same PC.
5. History function
allows you to page forward (Ctrl +F) and backward (Ctrl +B) to view all
completed charge/discharge plot within a service session.
6. The file name
being currently viewed is shown on the top of the application window.
For more information or to receive
a free 30-day trial CD, please contact us.
