ABTECH Battery Management
System |
|
Download ABMS
Datasheet

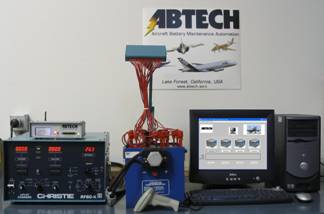

The ABTECH Battery Management System (AMBS) is a state-of-the-art, fully
integrated, automatic aircraft battery servicing solution. The system
features automatic remote PC control of the CHRISTIE RF80-K
Charger/Analyzer, real-time monitoring of battery and cell data, storage of
critical battery servicing information and access to various battery
management reports. The ABMS includes the AB3000 Controller with Aero-Panel
PC Interface, ABMS Software (WIN XP), Universal Cell Scanning Harness,
Interface Cables and Operator’s Manual.
|
|
Key Features:
 |
Remote PC Control of
RF80-K with Expanded Functionality and Accuracy |
|
Pre-programmed
Service Routines provide Automated Battery Processing |
|
Compatible with Existing and Emerging Aircraft Battery Chemistries |
|
Automatic Processing and
Data Monitoring Increase Battery Shop Productivity |
|
Fill-Master Interface for
Capturing and Logging Cell Water Consumption |
|
Expandable up to 32 Battery
Servicing Stations |
|
Color Display of Real-Time
Battery Servicing Data |
|
Battery Performance Graphs
of Discharge Capacity and Charge Cycle |
|
Accurate Monitoring of
Cell/Battery Voltage, Current and Temperature |
|
Battery Management Reports can be Viewed, Printed or Exported |
|
Complete Traceability to
Satisfy Regulatory Authorities |
|
Designed to Conform to
Battery Manufacturer’s Servicing Guidelines (CMMs) |
|
Work Order Form Records
Initial/Final Inspection, Servicing Results and Water Usage |
|
Cell Voltage Alert Conditions are Reported, Displayed and Recorded |
|
Data Back-Up Utility |
Battery
Management Reports:
End of Task Report:
Contains all cell/battery voltage/current data, plus amp-hour calculation,
charge/discharge graph and error summary.
Work Order Report: Contains initial inspection, end of task
summaries for all servicing steps, water consumption data and final
inspection checklist.
Water Usage Report:
Contains water consumption data by battery manufacturer, type or age, sorted
by manufacturer, type or serial number.
Battery Detail Report:
Contains summary information on all batteries in database by manufacturer,
type or age, sorted by manufacturer, type or serial number.
